NA2X2Y 0,6/1 kV 400 mm2
NA2X2Y 0,6/1 kV 400 mm2
Aplicación general como cable de energía, en instalaciones fijas.
Lee más- Nexans ref. : P00024314-1
Descripción
Descripción
Estándares
-
InternacionalIEC 60228; IEC 60502-1; IEC 60684-2; IEC 60754-1; IEC 60754-2; IEC 61034-2
-
NacionalICEA S-95-658; NTP-IEC 60228; NTP-IEC 60502-1; UL 2556
Application:
General application as power cable. In low voltage distribution power networks, industrial installations, in buildings and operation stations. In fixed installations, indoor and outdoor areas (trays, gutters, staples). It can be installed in ducts, in dry or wet locations.
Construction:

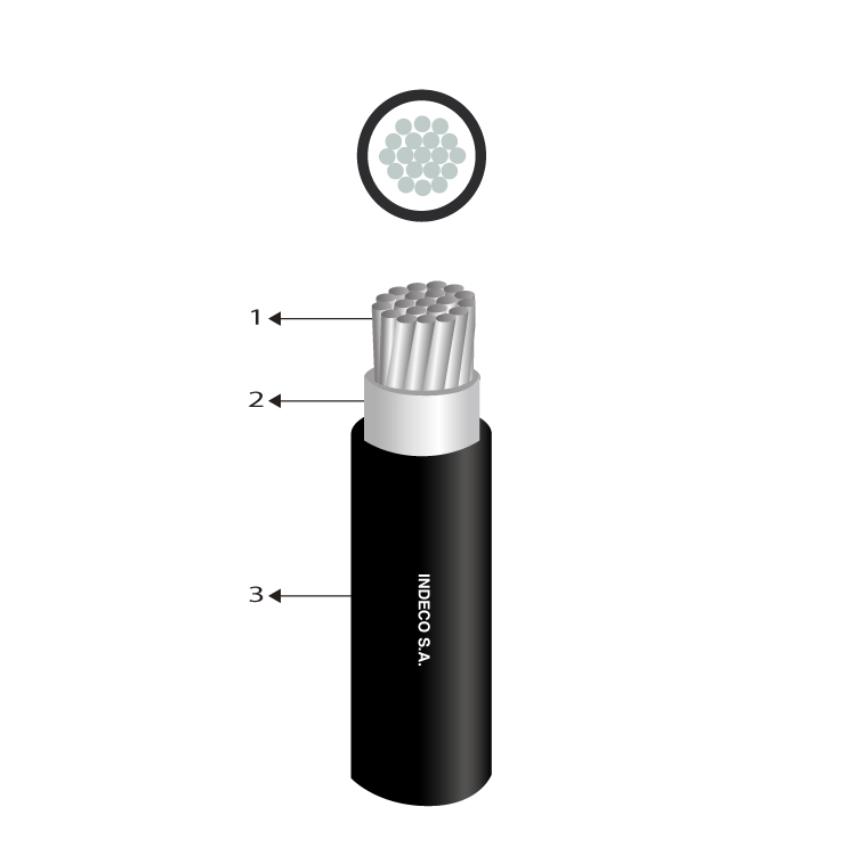

1. Conductor: Compact aluminium 1350, class 2.
2. Insulation: XLPE cross linked polyethylene.
3. Outer sheath: Low Linear Dendsity Polyethylene LLDPE-UV.
Voltage:
CA 0,6/1 kV (1,2 kV).
CC 1,5/1,5 kV (1,8 kV).
Main characteristics:
Good electrical and mechanical properties. Cross-linked polyethylene insulation allows greater power capacity under any operating condition, minimum dielectric losses, high insulation resistance. The outer sheath has the following characteristics: low emission dense smoke and halogen free. Resistance to abrasion, moisture and sunlight. Adequate resistance to greases and oils. Flame restardant.
Section:
From 120 mm2 up to 400 mm2.
Marking:
INDECO S.A. NA2X2Y 0,6/1 kV - Section - Year - Sequential length.
Packing:
Non returnable wooden reels.
Colour:
Insulation: Natural.
Outer sheath: Black-UV and Red-UV.
National standards
NTP-IEC 60228: Conductors of insulated cables.
NTP-IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV and 3 kV.
International standards
IEC 60228: Conductors of insulated cables.
IEC 60502-1: Power cables with extruded insulation and their accessories for rated voltages from 1 kV and 3 kV.
IEC 60332-1-2: Test for vertical flame propagation for a single insulated wire or cable - Procedure for 1 kW pre-mixed flame.
UL 2556: Wire and Cable Test Methods. Section 9.3: FT1 (Vertical-Specimen) Flame Test.
IEC 60684-2: Flexible insulating sleeving - Part 2: Methods of test.
IEC 60754-1: Test on gases evolved during combustion of materials from cables. Part 1: Determination of the halogen acid gas content.
IEC 60754-2: Test on gases evolved during combustion of materials from cables. Part 2: Determination of acidity (by pH measurement) and conductivity.
IEC 61034-2: Measurement of smoke density of cables burning under defined conditions.
ICEA S-95-658: Power cables rated 2000 volts or less for the distribution of electrical energy. Section 6.4.2: Oil: Oil Immersion Test.
UL 2556: Wire and Cable Test Methods. Section 4.2.8.5: Carbon-Arc and Xenon-Arc Tests- Sunlight resistance.
Condiciones de Cálculo de Corriente: Conductor de Aluminio Unipolar L.V.; 90°C
VALORES DE CAPACIDAD DE CORRIENTE Y CONDICIONES DE CALCULO DE CORRIENTE BASADOS EN IEC 60364-5-52:2009 :
TABLA B.52.5 (METODO D2: Enterrado en formación triangular).
TABLA B.52.13 (METODO F: Al aire en formación plana y en contacto).
TABLA B.52.13 (METODO F: Al aire en formación triangular).
Temperatura máxima del conductor : 90°C.
Temperatura ambiente : 30°C.
Temperatura del terreno : 20°C.
Profundidad de tendido hasta : 0,7 m.
Resistividad térmica del terreno : 2,5 K.m/W.
Cables con cubierta LLDPE-UV
Considerar caracteristica Baja Densidad de Humos de la IEC 61034-2 solo para los cables con chaqueta Roja.
